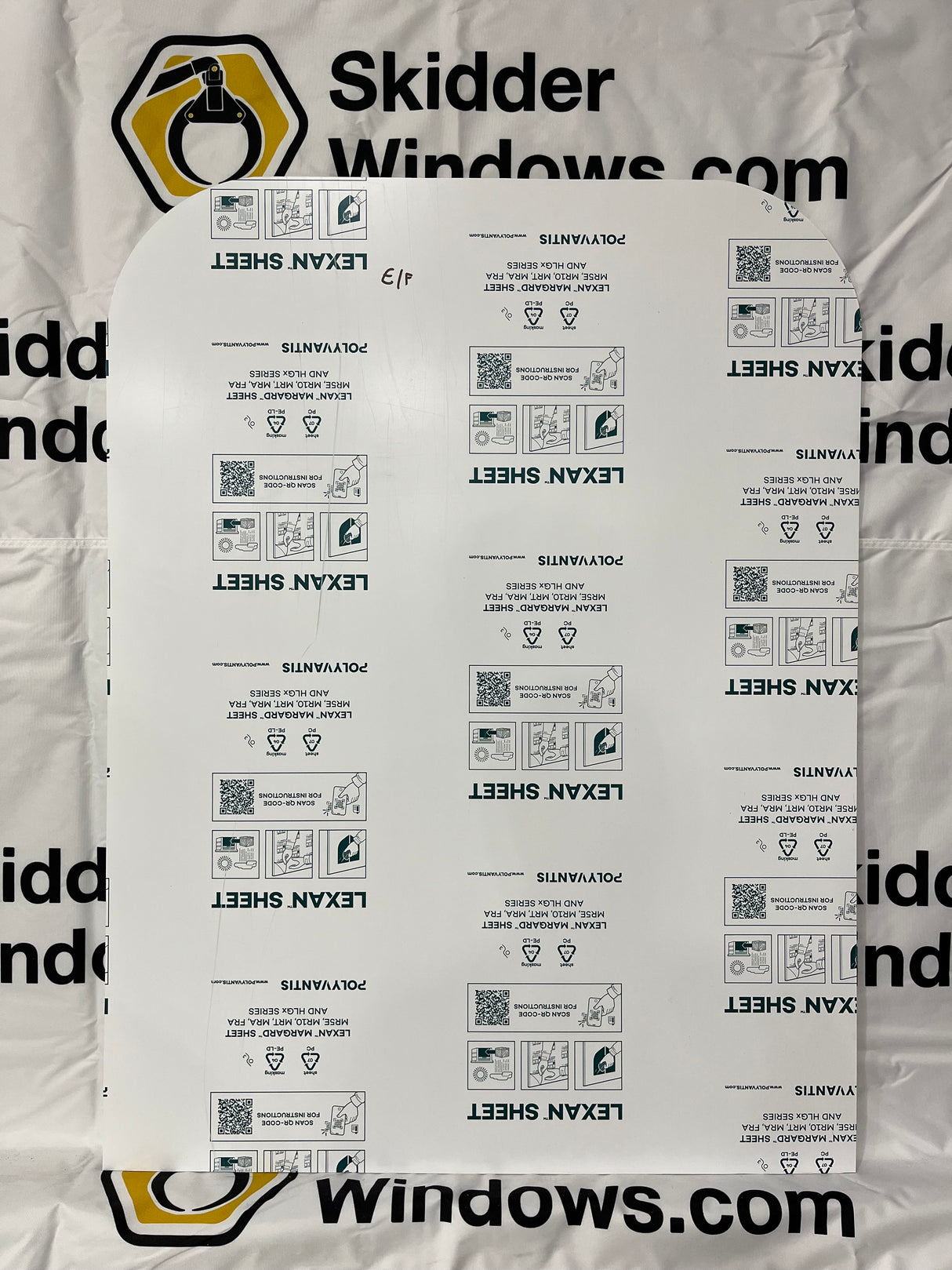

Cat E / F Series Excavator Windows OEM# 453-4794 & 334-6483 / 316-8854
Abrasion resistant polycarbonate and glass windows for the Cat E & F series excavators, for models:
E Series - 312EL, 316EL, 320EL, 323E, 324E, 329E, 336E, 349E, 349E LME
F Series - 320F, 320F L, 323F, 325F L, 325F LCR, 326F, 329F, 330F L, 335F, 336F, 336F L, 336F XE, 336F L XE
Serial Number Split:
312D SERIAL NUMBER PREFIX - PHH
319D/320D SERIAL NUMBER PREFIX - GDP
323D SERIAL NUMBER PREFIX - 7MF
345D SERIAL NUMBER PREFIX - LKY
Check your dimensions with ours listed below (tallest and widest measurements).
| Location | Replaces OEM # | Dimensions |

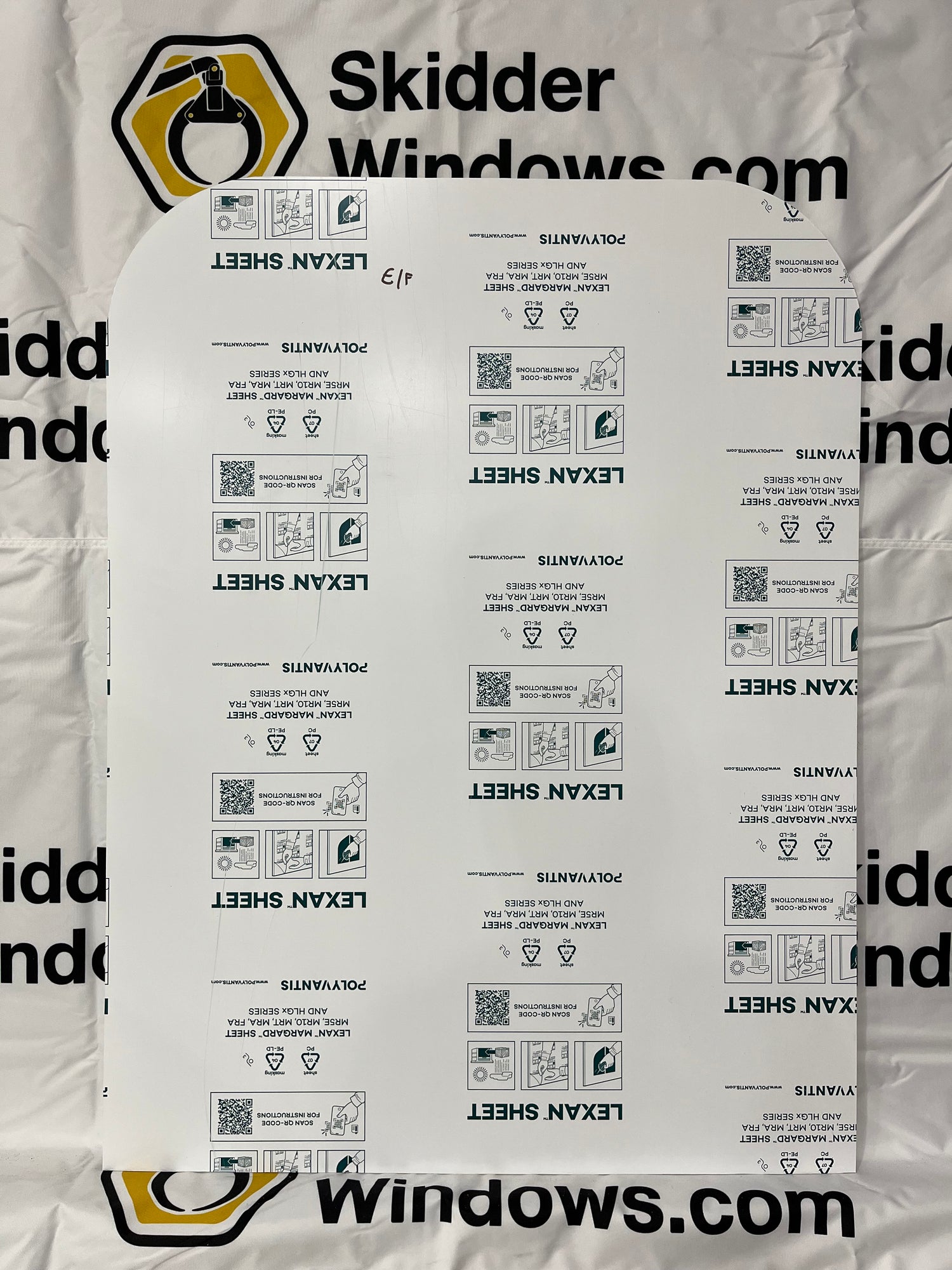

| Front Upper | 453-4794 & 334-6483 | 33 1/8" x 43 1/2" |

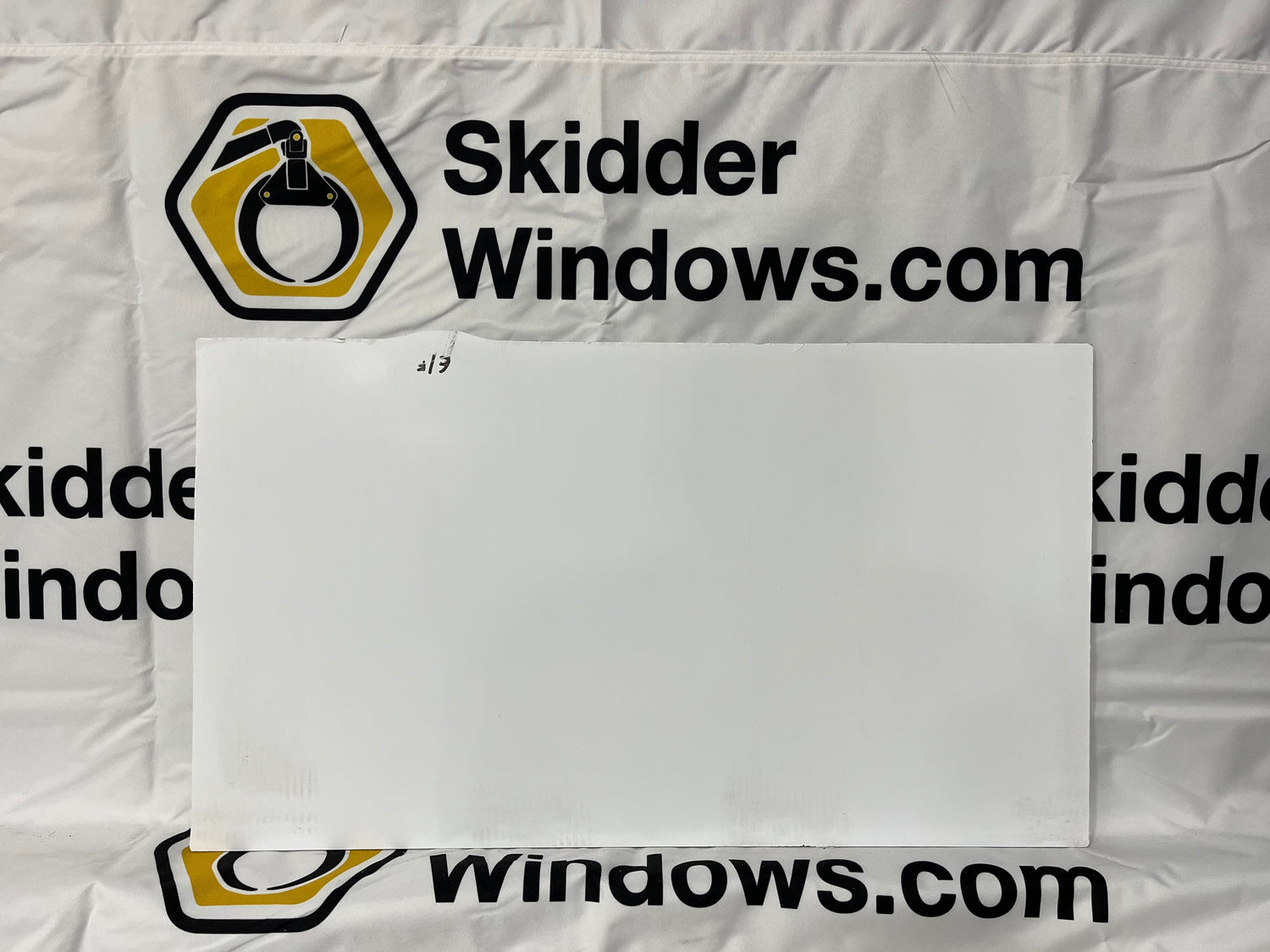

| Front Lower | 316-8854 | 31 1/2" x 18 1/8" |
Be sure to select which material you need; between GLASS or POLYCARBONATE.
If the window you are looking for says unavailable follow the instructions below:
Select the window location first as the thickness options will be dependent on which window you select. Then select your thickness and tint option.
Ready to get started? Please complete the form to request a quote for information on products, pricing and current offers. For Custom Polycarbonate Window and Guard Fabrication, please proceed here.
