Fabtek Forwarder Windows
|
Location
|
Dimension
|
FT2
|
|
Front
|
32 1/2" x 34 1/4" |
7.79
|
|
Rear
|
39 1/2" x 50 3/4" |
13.99
|
|
Driver Door Left
|
28 1/2" x 53" |
10.39
|
|
Opposite Door Right
|
23" x 51" |
8.07
|
|
Front Side L or R
|
16 1/4" x 45"
|
5
|
| Side L or R (Operable) | 22" x 31" | 4.81 |
| Lower Rear 'L' or 'R' | 13" x 13" | 1.17 |
| Light Guard Kit (3 pcs) | (2)@ 9" x 5 1/2"// (1)@ 16 1/2" x 5 1/2" | 1.32 |
Fits 344B, 344LB, 346B, 544C, and 546C Fabtek Forwarders. Will also fit Prentice Forwarders with the same cab style.

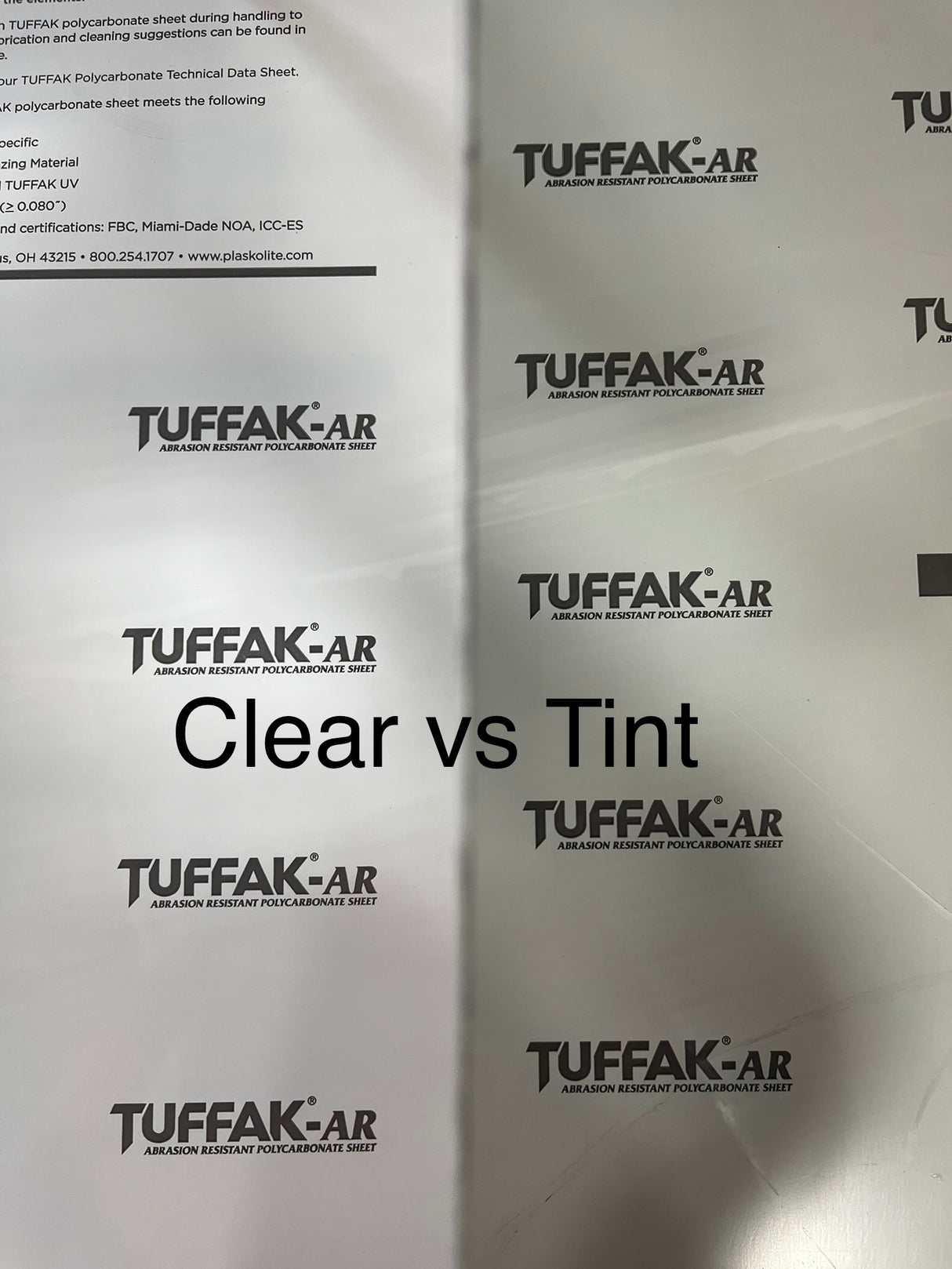

Double check measurements and compare to your machine. Measurements above are major dimensions (tallest and widest points only). Windows are 1/2" thick abrasion resistant polycarbonate, cut to size with holes drilled, ready to install. Available in both tint and clear. These machines typically had tinted windows from the factory.
Installation: These windows are bolted on to the machine with foam tape behind to act as weatherstripping.
Ready to get started? Please complete the form to request a quote for information on products, pricing and current offers. For Custom Polycarbonate Window and Guard Fabrication, please proceed here.
